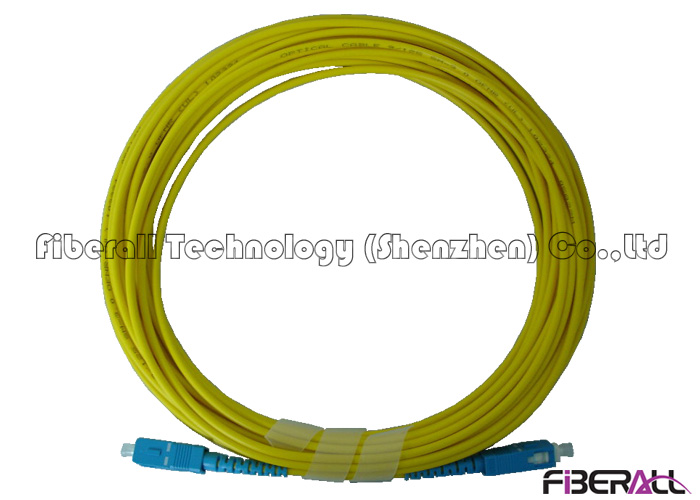

3mm High Tensile SM Fiber Optic Cable , Single Mode Fiber Optic Cable Blue Connector

FAPC-SPSPS1 , SC Simplex Fiber Optic Jumper With 3mm SM High Tensile Cable And Blue Connector

Dust Prevention And Its Effect On Fiber Optic Performance

Dust prevention is very important to fiber optic products, especially for fiber end face and fiber interface. All Fiberall fiber optic jumper and fiber optic pigtail must be cleared and make sure the end face and sleeve is clear before packing.

Dust, dirt and other pollutants are the enemy of high speed optical fiber data transmission. Because the data transmission in the optical fiber is dependent on the reflection of light, if there is dust, it will affect the light transmission and will increase the error rate, worst situation is the system can not be used. So the fiber end of fiber cable, fiber optic jumper, fiber optic pigtail and fiber interface of equipment can not be with dust. Nowadays network requires higher bandwidth so it also requires smaller losses in data transmission. Therefore, it is very important to ensure that all fiber connections are clean and non polluting. Non pollution is very important to ensure the successful implementation of network . Therefore, if necessary, fiber end must be inspected and cleaned every time before use.

It is also important to inspect and clean the ends of any connection, as the contaminants can be transferred from one end to the other. In addition, do not wait to clean the face until the problem come out. The accumulation of dirt or debris between two ends of the fiber connection will bring permanent damage such as cracks, scratches and depressions. If the above problems happened, it will need to terminate the connection again but not just clean.

Once there is pollutant, it must be removed to avoid problems. To clear correctly, it require to use correct cleaning products and cleaning steps, cleaning effect may not good if the cleaning method is not correct and it also may cause damage.

In order to achieve better fiber end cleaning effect, the following two tools must be used : special cleaning agent and cotton or cotton swab. The optical fiber cleaner must be able to dissolve certain contaminants and can act as a lubricant, so that it will not scratch the surface when removing contaminants. Do not use isopropyl alcohol (IPA), because the chemical will leave residual stains when it is dry . Fiberall also provide tools for fiber connector and interface cleaning.

Features

1. Low insertion loss and high return loss.
2. Excellent repeatability and changeability
3. Simplex cable with high tensile strength
4. With 2.5mm ceramic ferrule
5. PVC and LSOH cable jacket for option.
6. Compliant with Telcordia's GR-326-Core, IEC Standard

7. Excellent Polished and 100% pass test.

8. High stability in different environments

9. Customize color, length and label are acceptable

Specification Of FAPC-SPSPS1 Fiber Optic Jumper

fiber optic patch cables

single mode fiber patch cables

3mm High Tensile SM Fiber Optic Cable , Single Mode Fiber Optic Cable Blue Connector Images
