Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter

Name: Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter
Brand: Fiberall or OEM
Price: 1 USD

China Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter wholesale

Brand Name : Fiberall or OEM

Model Number : FA-PLCR1×2SA

Certification : RoHS

Place of Origin : China

MOQ : 1 piece

Price : Upon Request

Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPal

Delivery Time : Upon Order Qty

Packaging Details : Blister Box/Bubble Wrap/Carton

Product Name : Rack Mounted PLC Splitter

Fiber Channel : 1x2

Package Type : Rack Mounted Patch Panel

Panel Dimension : 1U 19 Inch

Connector Type : SC / APC

Splitter Inside : ABS Module

Adapter Type : SC / APC

Optical Ratio : Average

Working Wavelengths : Wide range 1260 ~ 1650 nm

Cable Length : Default 1.5m or Customized

Contact Now

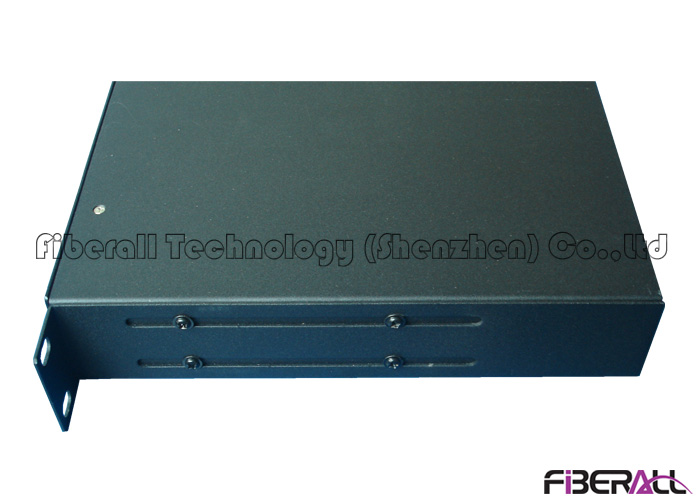

Rack Mounted Fiber Optic PLC Splitter 1x2 Loaded In Patch Panel With Adapter

The rack mounted type fiber optic PLC splitter is a pre-loaded patch panel include optical splitter . It is composed of patch panel , PLC splitter ( generally ABS box ) and fiber optic adapter . Its capacity can be from 1x2 to 1x64 , some special ODM panel also can contains two 1x64 splitter with LC connector . The panel is with excellent protection and convenient for filed operating , the operator do not need to strip cable and fiber , do not need to do fiber splicing but just insert the connector to the adapter directly . Meanwhile , the rack mounted patch panel is suitable for fiber distribution frame and easy for centralized management . Fiberall also offer pre-loaded wall mounted patch box for both indoor and outdoor use .

Product Parameters

Fiber Ports	1x2
Operating Wavelengths	1260~1650nm
Insertion Loss(dB)	Max.		4.0
Loss Uniformity(dB)	Max.		0.6
PDL(dB)	Max.		0.2
Return Loss(dB)	Min.		UPC: 50 APC: 55
Directivity(dB)	Min.		55
Optical Power(mw)	Max.		300
Input Fiber Type	Bend Insensitive SM Fiber(ITU G657A)
Output Fiber Type	Bend Insensitive SM Fiber(ITU G657A)
Humidity Range(rh)	5% ~ 85%
Operating Temperature(° C)	-40 ~ 85
Storage Temperature(° C)	-40 ~ 85
Package Options	Bare Fiber, Mini Steel Tube, ABS Module, LGX Box, Wall Mounted Patch Box, 1U or 2U Rack-Mount Patch Panel or Fiber Splice Joint Closure
Package Dimension	Bare Fiber Type	LWH		mm	5044
	Mini Steel Type	LWH		mm	60124
	ABS Module Type	LWH		mm	1208020
	LGX Box Type	LWH		mm	13010050
	Rack Mounted Type	LWH		mm	1U 19”
	Other Type	LWH		mm	Customized

Application Of Rack Mounted PLC Splitter

Optical Distribution Frame

Fiber Optic Distribution Network

Fiber Management System ( FMS )

Central Office

Fiber To The Building

Order Information of Fiberall PLC Fiber Splitter

Parameter	Options
Channel	1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X2, 2X4, 2X8, 2X16, 2X32, 2X64
Encapsulation Type	Bare Fiber, Round steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Rack mounted, Wall Mounted
Wavelength	1260 to 1650nm
Optical ratio	Average
Input / Output diameter	Bare Fiber, Ribbon fiber , 0.9mm , 2.0mm , 3.0mm
Jacket of Input / Output Cable	PVC or LSZH
Connector Type	SC, LC, FC, ST, MU, DIN, E2000 and so on or without connector
End Polishing	PC, UPC ( SPC ) or APC
Cable length	1.5 meters or Customized
Fiber Type	SM G657A1 or Appointed
Test report	YES
RoHS	YES
Other	Customized Label, Customized Print
