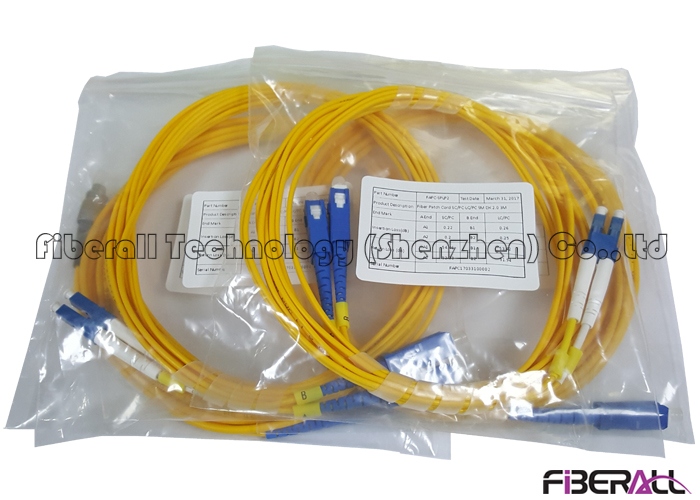

FAPC-SPLPS2P , Premium High Return Loss Fiber Optic Jumper LC To SC Patch Cord For Telecom
The transmitting and receiving wavelengths of the optical transceiver at both ends of the fiber optic jumper must be consistent, that is to say, both ends of the fiber must be fiber optic transceiver with same wavelength. In general, short wavelength optical transceiver uses multimode fiber, and long wavelength uses single-mode fiber to ensure the accuracy of data transmission. Fiberall reminds users who uses fiber optic patch cord should pay attention to the following matters in order to get the best use effect.
1, In the use of optical fiber patch cord, do not excessive bending and winding, this will increase optical attenuation in the transmission process.
2, If the fiber connector are contaminated, you can use cotton swabs dipped in alcohol to clean, otherwise it will affect the quality of communication.
3, After the use of fiber optic jumper, must use protective cap to protect the optical fiber connector, or dust and oil pollution will damage the coupling of the optical fiber.
4, The minimum bending radius is not small than 150mm.
5. Before using the optical fiber patch cable, ceramic ferrule and end face must be cleaned with alcohol and absorbent cotton.
6, when the laser signal is transmitted, don't look at the optical fiber end face directly.
7. Protect the ferrule and end face, prevent bruising and pollution, remove the dust cap timely.
8, Before installation, should carefully read the instructions, and install and debug under the guidance of the manufacturer or dealer.
9, Man-made and other non unexpected damage of optical fiber jumper should be promptly replaced.
10, When optical fiber network or system meets abnormal situation, can be tested by troubleshooting method. To test or exclude fault of fiber jumper can make off test, usually use visible laser pen to judge the whole optical fiber link. Or further use precise optical fiber insertion loss/return loss instrument to test all its parameters.
Specification Of LC-SC Patch Cord
| Item | Parameters |
| P/N | FAPC-SPLPS2P |
| Product Specification | Fiber Patch Cord Duplex Single mode LC/PC - SC/PC 2.0mm |
| Sheath Material | PVC or LSZH |
| Fiber Type | Single Mode OS1 or OS2 |
| Test Wavelength | 1310nm, 1550nm |
| Insertion Loss (IL) | Typical ≤0.20dB,Maximum ≤0.30dB |
| Return Loss (RL) | UPC≥50.0dB,APC≥60.0dB |
| Durability | Mating 1000 times,typical change ≤0.20dB |
| Diameter Options | OD0.9mm/OD1.8mm/OD2.0mm/OD3.0mm |
| Ferrule Diameter | ∮2.5mm:SC, ∮1.25mm:LC |
| Boot Color | LC boot: White , SC boot: Blue |
| Working Temperature | -20℃ to 70℃ |
| Storage Temperature | 40℃ to 85℃ |
| Ferrule Parameter | Bore diameter:125.3+1/-0μm, concentricity : ≤1.0μm |
Advantages Of Fiberall Optical Patch Cord
1. Ceramic ferrule is with stable quality and easy for polishing;
2. Stable supply capacity(15000-20000pcs termination per day);
3. Fast delivery time(generally 5-7days);
4. Quality is strict controlled under ISO9001 quality system;
5. 100% pass test before shipping;
6. 3D interferometer test with report is available for option.
